Name: P0.9 P1.25 P1.5 COB LED Display 1000cd Brightness 3840Hz Refresh
Brand: Hunan Caiyi Photoelectric Technology Co., Ltd
SKU: COB007
Price: 349.00 USD
Availability: InStock

제품 상세정보

원래 장소: 중국

모델 번호: COB007

지불과 운송 용어

최소 주문 수량: 1

가격: $329-369

최고의 가격을 얻으십시오

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high brightness COB LED display, ultra-high refresh rate LED display, P0.9 P1.25 P1.5 COB display


픽셀 피치:	0.62mm, 0.78mm, 0.93mm, 1.25mm, 1.5625mm, 1.875mm	픽셀 밀도:	2560000, 1638400, 1137777, 640000, 409600, 284444
모듈 크기:	150168.75mm, 320160*12mm	모듈 해상도:	240270, 192216, 160180, 120135, 96108, 8090, 256128, 208104, 172*86
캐비닛 크기:	600337.539.75mm	캐비닛 해상도:	960540, 768432, 640 × 360, 480 × 270, 384 × 216, 320 × 180
캐비닛 무게:	≈4kg	표면 경도:	4h
명도:	600NIT, 550NIT, 550 ± 50 NIT	전력 소비:	700W/235W, 20W, 16W
작동 전압:	AC100 ~ 240V, ≥DC 4.5V	각도를 봅니다:	160 ° ± 10 °, 160 °, 170 °
새로 고침 속도:	1920Hz-3840Hz, 3840Hz	색 온도:	50 & 60
대비 비율:	≥10000 : 1

픽셀 피치:	0.62mm, 0.78mm, 0.93mm, 1.25mm, 1.5625mm, 1.875mm
픽셀 밀도:	2560000, 1638400, 1137777, 640000, 409600, 284444
모듈 크기:	150168.75mm, 320160*12mm
모듈 해상도:	240270, 192216, 160180, 120135, 96108, 8090, 256128, 208104, 172*86
캐비닛 크기:	600337.539.75mm
캐비닛 해상도:	960540, 768432, 640 × 360, 480 × 270, 384 × 216, 320 × 180
캐비닛 무게:	≈4kg
표면 경도:	4h
명도:	600NIT, 550NIT, 550 ± 50 NIT
전력 소비:	700W/235W, 20W, 16W
작동 전압:	AC100 ~ 240V, ≥DC 4.5V
각도를 봅니다:	160 ° ± 10 °, 160 °, 170 °
새로 고침 속도:	1920Hz-3840Hz, 3840Hz
색 온도:	50 & 60
대비 비율:	≥10000 : 1

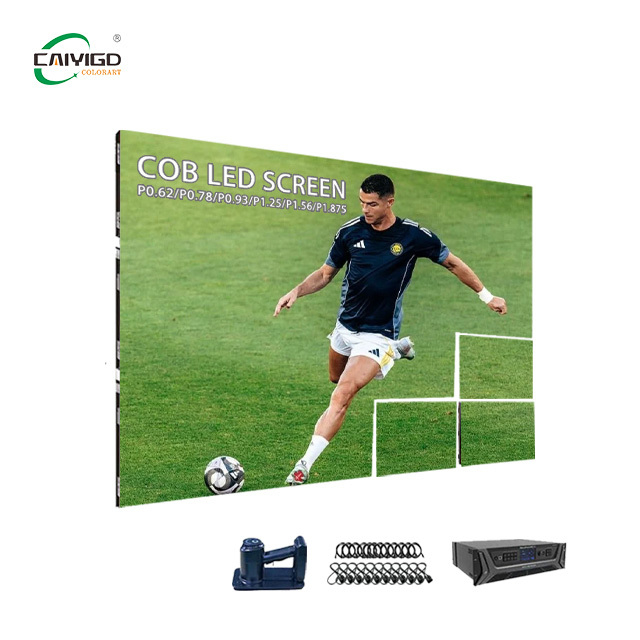

P0.9 P1.25 P1.5 COB LED Display 1000cd Brightness 3840Hz Refresh

P0.9 P1.25 P1.5 Indoor LED Wall Display - 2K/4K Ultra Thin COB LED Screen Panel

Advanced COB Technology vs Traditional SMD

Flip-chip COB package uses Mini/Micro LED chips directly integrated on PCB
Eliminates traditional soldering processes for improved reliability
Reduces failure rates and extends product lifespan
Enables smaller pitch sizes and higher resolution displays
Lower dead lamp rate compared to conventional SMD technology

Key Features and Benefits

Superior Visual Quality: Non-reflective screen with high refresh rate (3840Hz) for perfect image reproduction
Lightweight Construction: Aluminum profile cabinets weighing only 4-7kg
Seamless Assembly: CNC-processed modules for perfect alignment
Easy Installation: Front service design with cable-free connections
Durable Protection: IP65 rating for dust and water resistance

Technical Specifications

Model	P0.62	P0.78	P0.93	P1.25	P1.5625	P1.875
Pixel Pitch	0.62mm	0.78mm	0.93mm	1.25mm	1.5625mm	1.875mm
Pixel Density	2,560,000	1,638,400	1,137,777	640,000	409,600	284,444
Brightness	600nit	600nit	600nit	550nit	550nit	550nit
Refresh Rate	1920Hz-3840Hz
View Angle	160°±10°
Power Consumption	700W/235W			20W/16W
